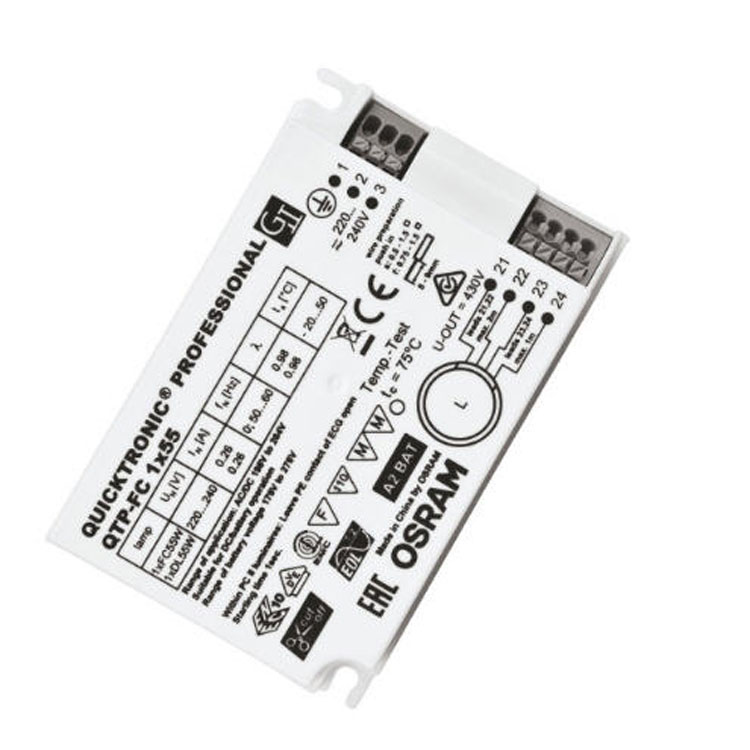

Osram QT-P 1x55 voor FC 55W en TL-5C 55W

  • Beschrijving
  • Meer
  • Specificaties
Elektronische ballast (VSA) voor gebruik van de volgende lampen:
1 X TL5C 55W of OSRAM LUMILUX T5 FC 55W,1x  PLL 55W, 1x DULUX L 55W

Electrical data

Input voltage AC 198…264 V
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Input voltage DC 176…276 V
Operating frequency 40…50 kHz
Max. ECG no. on circuit breaker 10 A (B) 12
Max. ECG no. on circuit breaker 16 A (B) 19
Inrush current 40 A

Light technical data

Starting time 1.0 s

Dimensions & weight

Length 360.0 mm
Width 30.0 mm
Height 21.0 mm
Mounting hole spacing, length 350.0 mm
Product weight 235.50 g

Temperatures & operating conditions

Ambient temperature range -20…+50 °C
Permitted rel. humidity during operation 5…85 %


ECG lifetime 100000 h

Additional product data

Suitable for lamp power (1 lamp) 80 W


End of lamp life safety shutdown EOL T.2
Suitable for fixtures with prot. class I / II
Dimmable No

Certificates & standards

Approval marks – approval VDE / VDE-EMC / ENEC 10 / CE
EEI – Energy Label A2 BAT
Standards Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547
Protection class III
Type of protection IP20
Aantal lampen 1
Geschik voor Wattage 55W
