HF-S selectaluma 118/136 TL-D II 220-240V
  • Beschrijving
  • Meer
  • Specificaties

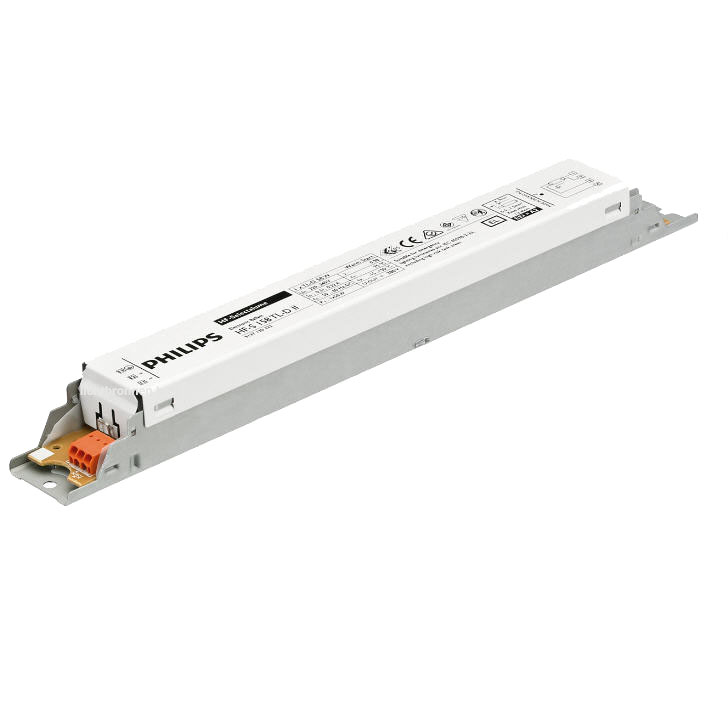

PHILIPS HF-S 1x18W VSA  HF-S 1x18W / 1x36W



Voorschakelapparaat voor het aansturen van 1 TL of PL-L lamp van 18W tot 36W

Philips HF-Performer III is een robuust elektronisch voorschakelapparaat (hoogfrequent) voor gebruik met de volgende fluorescentie lampen:

Philips Master TL-D 18W
Philips Master PL-L 18W
Osram Lumilux 18W
Osram Dulux L 18W
Sylvania Luxline 18W

Philips Master TL-D 36W
Philips Master PL-L 36W
Osram Dulux L 36W
Osram Lumilux 36W



Afmetingen:

Lengte 28cm, Breedte 3cm, Hoogte 2,8cm


General Information
Application Code II
Type Version mk1
Lamp Type TL-D
Number of Lamps 1 piece/unit
Number of Products on MCB (16A Type B) (Nom) 28
Automatic Restart Yes
Input Voltage 220 to 240 V
Input Frequency 50 to 60 Hz
Operating Frequency (Nom) 45 kHz
Crestfactor (Nom) 1.7
Power Factor 100% Load (Nom) 0.98
Preheat Time 1.6 s
Mains Voltage Performance (AC) 202-254V-8%-+6%
Mains Voltage Safety (AC) 198-264V-10%-+10%
Earth Leakage Current (Max) 0.5 mA
Inrush Current Width 0.35 ms
Ballast Factor (Nom) 1.05
Power Losses (Nom) 3.8 W
Inrush Current Peak (Max) 18 A
Connector Type Input Terminals WAGO 744 connector
Cable Capacity Output Wires Mutual (Max) 200 pF
Connector Type Output Terminals WAGO 744 connector  [ Suitable for manual wiring]
Cable Length Hot Wiring 0.75 m
Wire Striplength 8.0-9.0 mm
Dual Fixture Master/Slave Possible, lamp wires 2m max. length  [ Master/Slave operation possible]
Input Terminal Cross Section 0.50-1.50 mm²
Output Terminal Cross Section 0.50-1.50 mm²
Cable Capacity Cold Output Wires - Earth (Max) 200 pF
Cable Capacity Hot Output Wires - Earth (Max) 200 pF
Rated Ballast-Lamp Power 36 W
Rated Lamp Power on TL-D 36 W
System Power on TL-D 38.8 W
Lamp Power on TL-D 35 W
Power Loss on TL-D 3.8 W
T-Ambient (Max) 55 °C
T-Ambient (Min) -20 °C
T-Storage (Max) 80 °C
T-Storage (Min) -40 °C
T-Case Lifetime (Nom) 75 °C
T-Case Maximum (Max) 75 °C
Housing L 280x30x28
Nominal Light Output After 60 Seconds 100% of EBLF
Normal Operating Voltage (DC) 220-240 V
Battery Voltage Guaranteed Operation 176-275 V
Battery Voltage Guaranteed Ignition 186-275 V
Emergency Ballast Lumen Factor (EBLF) (Nom) 100 %
Nominal Light Output After 5 Seconds 50% of EBLF
Energy Efficiency Index A2 BAT
IP Classification IP 20  [ Ingress Protection 20]
EMI 9 kHz ... 30 MHz EN55015
Vibration Standard IEC68-2-6 F c
Bumps Standard IEC 68-2-29 Eb (10G/16ms)
Approval Marks

F-Marking

CE marking

ENEC certificate

CCC certificate

C-Tick certificate

PSB certification

TISI marking

SIRIM approval

CB Certificate

CCC certificate

VDE-EMV certificate
Hum And Noise Level < 30 dB(A)
Full product code 872790090551900
Order product name HF-S 118/136 TL-D II 220-240V 50/60Hz
EAN/UPC - Product 8711500999290
Order code 913713032166
Numerator - Quantity Per Pack 1
Numerator - Packs per outer box 12
Material Nr. (12NC) 913713032166
Net Weight (Piece) 0.200 kg
Aantal lampen 1
Geschik voor Wattage 18W en 36W
Dimbaar Nee
Philips
8727900905519
