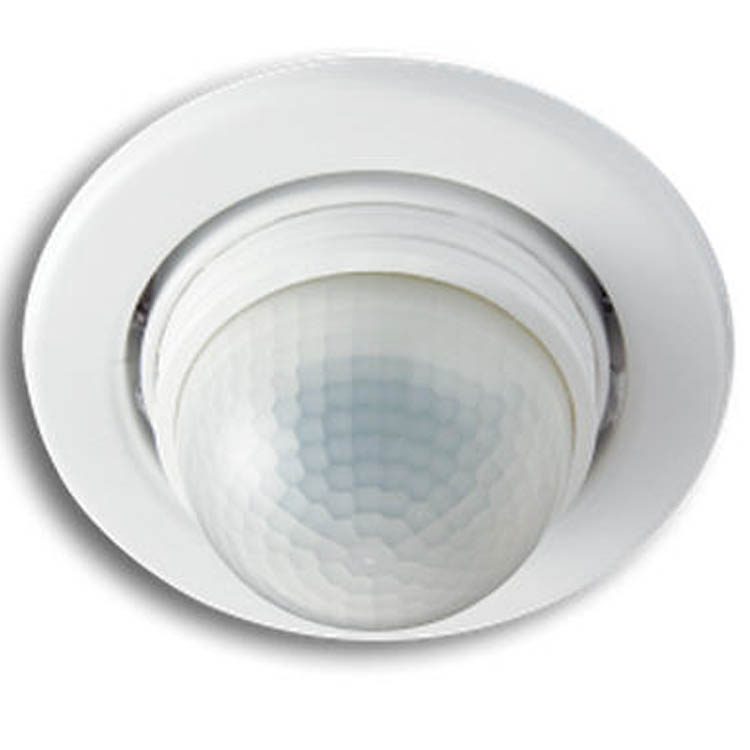

Technical specifications Infrared motion detector IS D 360 |
|
European Article Number (EAN) |
4007841601317 |
|
Type |
Motion detector |
|

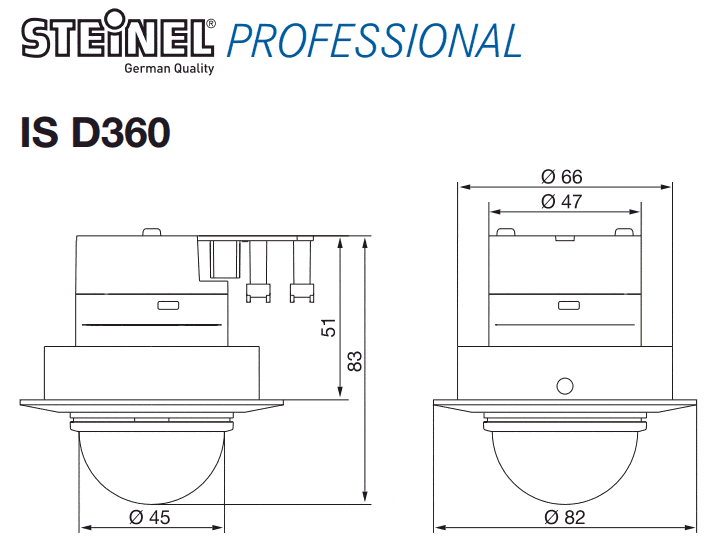

Dimensions(h x w x d) |
83 x 82 mm dia. |
|
Voltage |
230-240 V/50 Hz |
|
Sensor type |
Passive infrared |
|
Application |
inside buildings |
|
Installation |
Ceiling |
|
Recommended installation height |
2.50 m |
|
max. output (resistive load, incandescent lamp) |
1000 W |
|
max. output (uncorrected, inductive, cos φ = 0.5, e.g. fluorescent lamps) |
500 VA |
|
max. output (series-corrected) |
900 W |
|
max. output (parallel corrected, with C ≤ 45.6 µF) |
500 W |
|
max. output (electronic ballasts, capacitive, e.g. low-energy lamps) |
4 ea. max., C ? 88 µF |
|

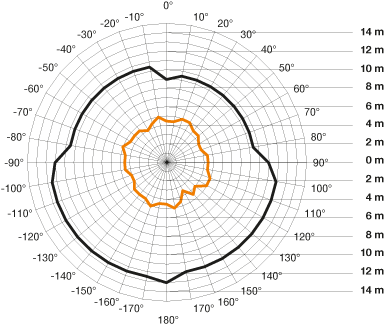

Detection angle |
360° with 180° angle of aperture |
|
Reach |
8 m max. all round; temperature-stabilised |
|
Sensor system |
10 detection levels
720 switching zones |
|
Response brightness |
2-2000 lx |
|
Time setting |
5 sec. - 20 min. |
|
Manual override |
selectable, 4h |
|
IP rating |
IP20 |
|
Protection class |
II |
|
Temperature range |
-20-+50 °C |
|
Includes |
standard white trim |
