• General Characteristics
Cap-Base 2G11
Cap-Base Information 4 Pins
Bulb 2xT16
Main Application Phototherapy
Useful Life 1000 hr
Life to 50% failures EL 1000 hr
• Light Technical Characteristics
Color Code 01 Chromaticity Coordinate X 228 -
Chromaticity Coordinate Y 230 - Depreciation 500 hours 15 %
Depreciation 1000 hours 20 %
• Electrical Characteristics
Lamp Wattage 36 W
Lamp Wattage Technical 36 W
Lamp Voltage 105 V
Lamp Current 0.435 A
• UV-related Characteristics
UV-B Radiation 100hr (IEC) 4.8 W
UV-B Radiation 5hr (IEC) 6.2 W

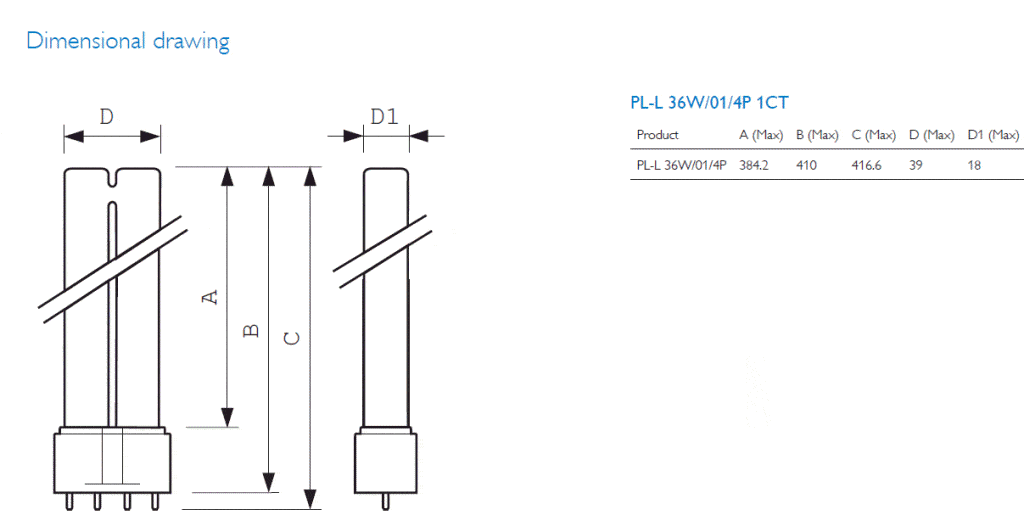

• Product Dimensions
Base Face to Base Face A 384.2 (max) mm
Insertion Length B 410 (max) mm
Overall Length C 416.6 (max) mm
Diameter D 39 (max) mm
Diameter D1 18 (max) mm
• Product Data
Order code 927903400121
Full product code 927903400121

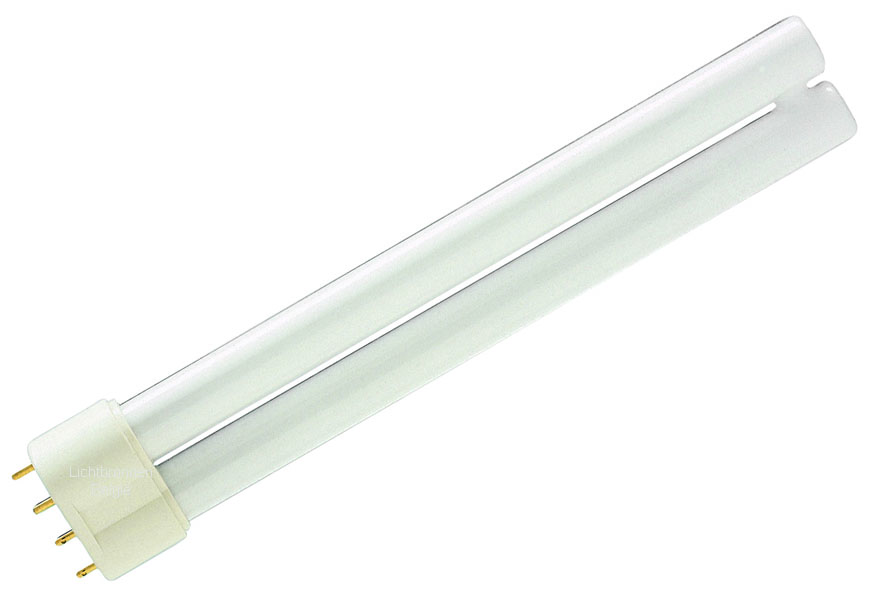

Full product name PL-L 36W/01/4P 1CT
Order product name PL-L 36W/01/4P 1CT/25
Pieces per pack 1
Packing configuration 25
Packs per outerbox 25
Bar code on pack - EAN1 8711500868893
Bar code on outerbox - EAN3 8711500868909
Logistic code(s) - 12NC 927903400121
Net weight per piece 104.000 gr
