- General Characteristics
Cap-Base G5
Bulb T16
Useful Life 5000 (max) hr
Life to 50% failures EM 8000 hr
- Light Technical Characteristics
Color Code 108 [08 lead free glass]
Color Designation (text)
Blacklight Blue Depreciation 5000
Hours 35 % Depreciation 2000 hours 25 %
- Electrical Characteristics
Lamp Wattage 4 W
Lamp Wattage Technical 4.5 W
Lamp Voltage 29 V
Lamp Current 0.17 A
- UV-related Characteristics
UV-B/UV-A (IEC) 0.25 %
UV-A Power (IEC) 0.48 W
- Product Dimensions
Base Face to Base
Face A 135.9 (max) mm
Insertion Length B 140.6 (min), 143 (max) mm
Overall Length C 150.1 (max) mm
Diameter D 16 (max) mm
- Product Data
Order code 928000010803
Full product code 928000010803

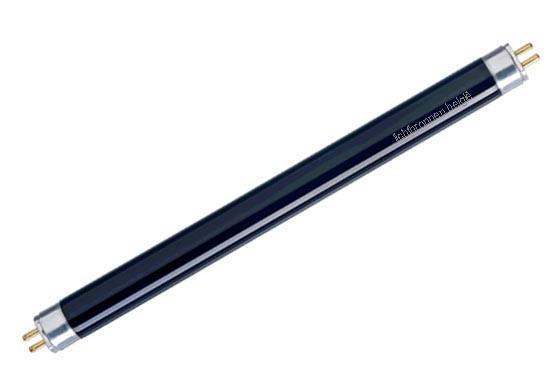

Full product name TL 4W BLB FAM
Order product name TL 4W BLB FAM/10X25BOX
Pieces per pack 1
Packing configuration 10X25CC
Packs per outerbox 250
Bar code on pack -
EAN1 8711500951014
Bar code on intermediate packing -
EAN2 8711500950994
Bar code on outerbox - EAN3
8711500951007
Logistic code(s) - 12NC 928000010803
Net weight per piece 18.600 gr
