Osram Lumilux FH T5 HE 35W/830 - 145cm

  • Beschrijving
  • Meer
  • Specificaties

Energielabel A TL lamp.  Dikte 16mm. Deze Osram LUMILUX T5 HE 35W/830 is 20% zuiniger dan de T8 (26mm) lumilux L (Philips TL-D).



Verkrijgbaar in de lampkleuren 827 (warm wit) ,830 (wit), 840 (helder wit), 865 (daglicht)



Levensduur Osram LUMILUX T5 HE 35W/830 is 24.000 uur. Zeer goede lumenbehoud (lumenbehoud tot 90% van de levensduur). De Osram T5 levert tot wel 105 Lumen/Watt. Deze T5 lamp met G5 lampvoet is dimbaar.

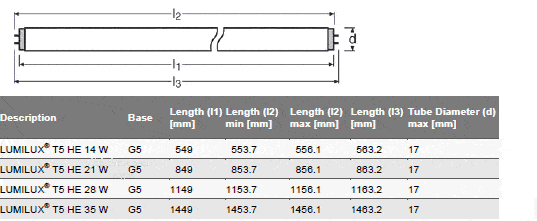

 Lengtemaat Osram LUMILUX T5 HE











Electrical data

Nominal voltage 209 V
Nominal wattage 35.5 W
Rated lamp efficacy (HF data 25 °C) 94 lm/W
Rated wattage 35.50 W
Lamp current 0.17000 A

Photometrical data

Color rendering index Ra ≥80
Rated luminous flux 3320 lm
Luminous flux at 25 °C 3320 lm
Luminous flux at 35 °C 3650 lm
Light color 830
Color temperature 3000 K
Nominal luminous flux 3320 lm
Light color (designation) LUMILUX Warm White
Rated LLMF at 2,000 h 0.95
Rated LLMF at 4,000 h 0.92
Rated LLMF at 6,000 h 0.91
Rated LLMF at 8,000 h 0.90
Rated LLMF at 12,000 h 0.90
Rated LLMF at 16,000 h 0.90
Rated LLMF at 20,000 h 0.89

Dimensions & weight

Tube diameter 16 mm
Length 1463 mm
Length with base excl. base pins/connection 1449.00 mm
Diameter 16.0 mm
Maximum diameter 16.0 mm

Temperatures

Rated ambient temp.w.max.luminous flux 35.0 °C

Lifespan

Service life 19000 h
Lifespan 24000 h
Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.97
Rated lamp survival factor at 6,000 h 0.95
Rated lamp survival factor at 8,000 h 0.92
Rated lamp survival factor at 12,000 h 0.91
Rated lamp survival factor at 16,000 h 0.90
Rated lamp survival factor at 20,000 h 0.85
Operation mode LLMF/LSF HF
Rated lamp life time 24000 h
Nominal lamp life time 24000 h

Additional product data

Base (standard designation) G5
Lamp mercury content 1.9 mg
Appropriate disposal acc. to WEEE Yes
Product remark Suitable for ECG operation only/Lamp designed for internal luminaire temperatures of 30…40 °C; optimum luminous flux achieved at 35 °C

Capabilities

Dimmable Yes
Suitable for indoor Yes

Certificates & standards

Energy efficiency class A+
Energy consumption 40 kWh/1000h
Lampvoet G5
Wattage 35W
Lichtkleur (K) 3000K - Warm wit
Kleurcode 830 - Warm Wit
Lengte 145cm
Kleurweergave (Ra) Ra8
Lampvorm TL5
Lampdiameter (mm) 16 mm
Osram
4050300464763
