• Milieu eigenschappen
Kwikinhoud (Hg) 13 mg
• Voorwaarden Armatuurontwerp
Kneep temperatuur 280 (max) C
Lamp temperatuur 650 (max) C
• Afmetingen in mm.
Insteekdiepte B 132.0 (max) mm
Totaal lengte C 135.4 (max) mm
Lamp diameter D 23.0 (max) mm
Licht Center Lengte L 66.0 mm
Ontladingsbuis lengte O 17.8 mm
Licht Center Lengte L [inch] 2.60 in
Totale lengte C [inch] 5.33 (max) in
Lamp diameter D [inch] 0.89 in
• Produkt data
Bestelcode 733993 15
EOC productcode 871150073399315

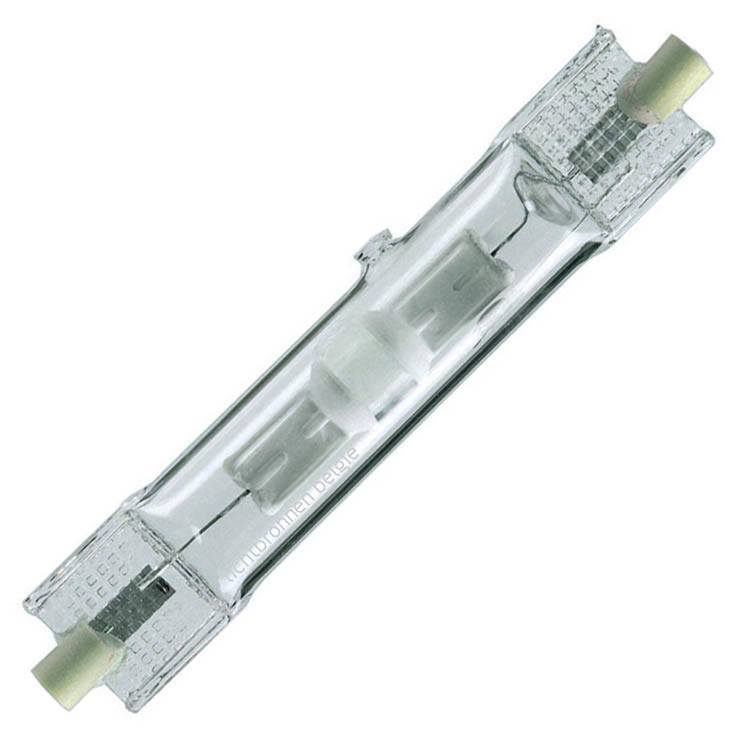

Productnaam MHN-TD 150W/842 RX7s 1CT
Bestel productnaam MHN-TD 150W/842 RX7s 1CT/12
Aantal per verpakking 1
Verpakkings aantal 12
Verpakkingen per buitendoos 12
Barcode op product 8711500733993
Barcode op buitendoos 8711500183675
Logistieke code(s) 928076505192
ILCOS code MD-150/42/1B-H-Rx7s-/H
Netto gewicht per stuk 0.020 kg
Waarschuwingen en veiligheid
• Use only in totally enclosed luminaire, even during testing (IEC61167, IEC 62035, IEC60598)
• The luminaire must be able to contain hot lamp parts if the lamp ruptures
• Control gear must include end-of-life protection (IEC61167, IEC 62035)
• Algemene eigenschappen
Lampvoet RX7s
Lampvoet informatie 24
Lampvorm T24 [T 24mm]
Lamp afwerking Helder
Brandstand p45 [Horizontaal +/-45°]
Levensduur tot 5% uitval 5000 hr
Levensduur tot 20% uitval 8000 hr
Levensduur tot 50% uitval 10500 hr
• Technische Lichteigenschappen
Kleur code 842 [CCT of 4200K]
Kleurweergave 85 Ra8
Lichtkleur Koel Wit
Kleurtemperatuur 4200 K
Chromaticiteit coordinaat X 370 -
Chromaticiteit coordinaat Y 370 -
Lichtstroom lamp EM 12900 Lm
Specifieke lichtstroom lamp 86 Lm/W
Lumenbehoud 2000uur 80 %
Lumenbehoud 5000uur 75 %
Lumenbehoud 10000uur 70 %
Gemiddelde luminantie EM 1100 cd/cm2
• Elektrische kenmerken
Nominaal lampvermogen 150 W
Lampvermogen met conv vsa 150.0 W
Lampspanning 98 V
Lampstroom met conv vsa 1.8 A
Ontsteekspanningspiek 3500 (min) V
Dimbaar/Regelbaar Nee
