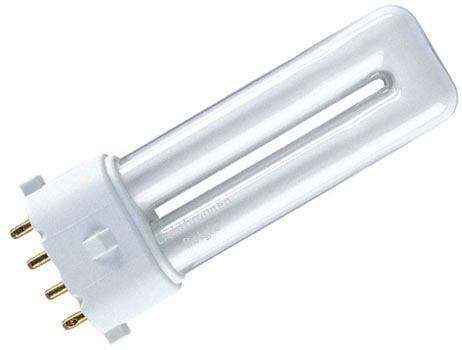

OSRAM DULUX S/E 7W/827

osram
4050300017648
4050300017648
  • Beschrijving
  • Meer details
Energie klasse A. OSRAM DULUX S/E 7W/827 is een energie zuinige professionele spaarlamp voor gebruik met conventioneel voorschakelapparaat. De Dulux S spaarlamp maakt gebruik van een 2G7 lampvoet. Lichtopbrengst bij 25°C is 57 -81 Lumen/watt. Warmwitte lichtkleur



Levensduur OSRAM DULUX S/E 7W/827 is 10.000 uur



Verkrijgbaar: in de lampkleuren 827(warm wit) ,830(wit), 840(helder wit) en in de wattages 7W, 9W en 11W. De kleurweergave index Ra: 80 tot 89.

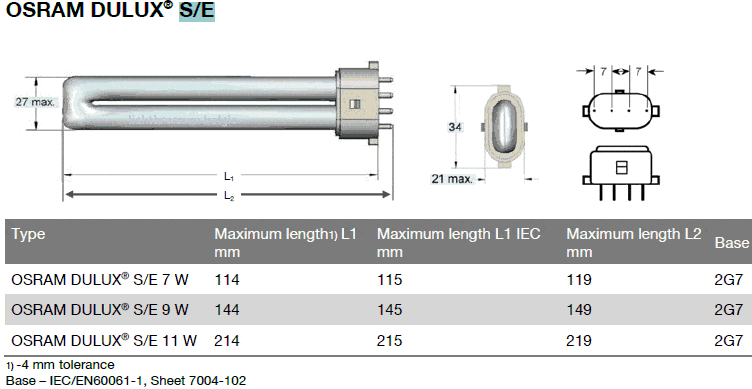

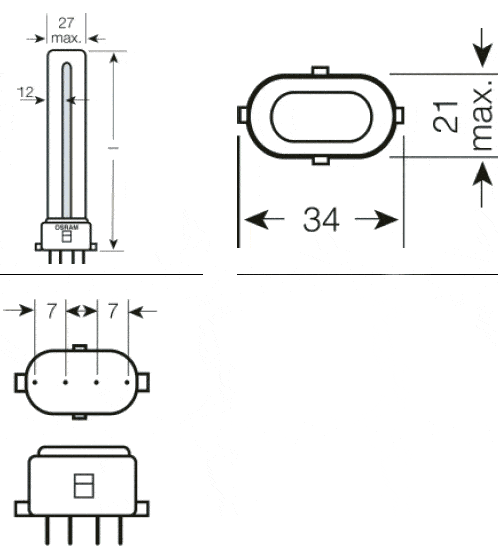

Alternatief: OSRAM DULUX S/E is uitwisselbaar met de Philips PL-S 4 pin lamp. U dient wel de zelfde wattages te gebruiken! Osram dulux s/e heeft 4 pinnetjes.Afmetingen DULUX D/E 7W, 9W en 11W

Nominal wattage

6.50 W

Rated wattage

6.50 W

Rated luminous flux

402 lm

Rated lamp efficacy (HF data 25 °C)

Under clarification by authority and standardization body

Photometrical data

Nominal luminous flux

400 lm

Color temperature

2700 K

Light color

827

Light color (designation)

LUMILUX INTERNA

Color rendering index Ra

80…89

Luminous flux at 25 °C

400 lm

Rated LLMF at 4,000 h

0.86

Rated LLMF at 6,000 h

0.84

Rated LLMF at 8,000 h

0.82

Rated LLMF at 12,000 h

0.79

Rated LLMF at 16,000 h

0.78

Rated LLMF at 20,000 h

0.76

Luminance

2.6 cd/cm²

Color rendering group

1B

Rated LLMF at 2,000 h

0.90

Dimensions & weight

Overall length

114.0 mm

Product weight

22.00 g

Tube diameter

12 mm

Length

114.0 mm

Length acc. to IEC standard

115 mm

Temperatures

Rated ambient temp.w.max.luminous flux

25.0 °C

Lifespan

Nominal lamp life time

20000 h

Rated lamp life time

20000 h

Service life

13000 h

Rated lamp survival factor at 2,000 h

0.99

Rated lamp survival factor at 4,000 h

0.99

Rated lamp survival factor at 6,000 h

0.99

Rated lamp survival factor at 8,000 h

0.99

Rated lamp survival factor at 12,000 h

0.95

Rated lamp survival factor at 16,000 h

0.81

Rated lamp survival factor at 20,000 h

0.50

Operation mode LLMF/LSF

HF

Lifespan

20000 h

Additional product data

Base (standard designation)

2G7

Lamp mercury content

1.4 mg

Appropriate disposal acc. to WEEE

Yes

Product remark

For ECG operation only

Capabilities

Suitable for indoor

Yes

Certificates & standards

Energy efficiency class

A

Energy consumption

8 kWh/1000h

Country specific categorizations

ILCOS

FSDH-7/827-/P/-2G7
